OBD ADVANCED ELM ELM327 Bluetooth

* Cara guna ELM327 : https://youtu.be/oDaVJwBFsgs

* Sila pastikan anda faham cara connect elm327 scanner sebelum place order. kita tak akan support masalah cara guna apps Torque lite atau Torque pro. Thanks.

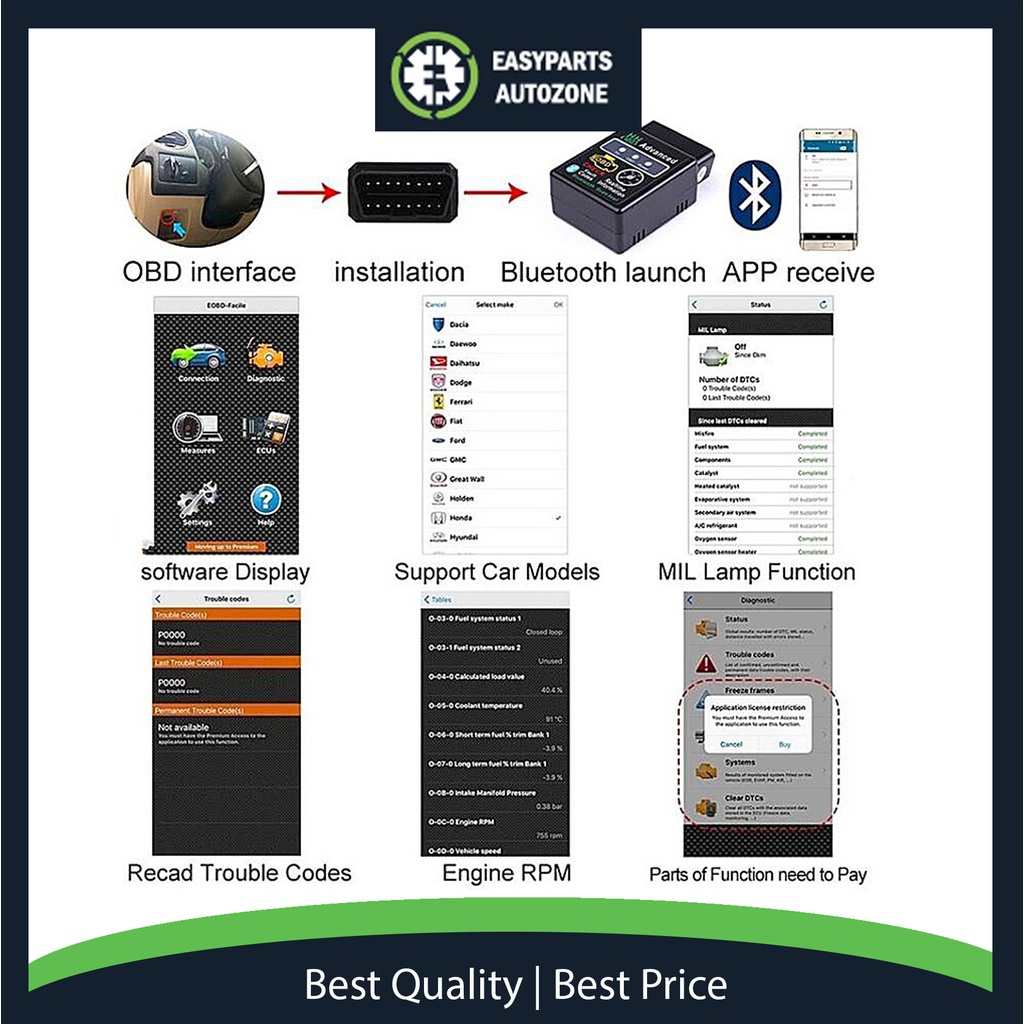

1.This is an vehicle diagnostic tool interface scanner, which is is used to read trouble codes, clear trouble codes and detect fuel pressure and so on.

2.OBD-II Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car’s computer.

3.The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer’s hard drive, and you’re ready to go.

4. To uninstall the program, simply delete the entire contents of the folder where the program resides. 5.The software supports four platforms – For DOS/Windows/Android. This product is a non-oem, generic product.

Notice: For Android :Recommend to use apps Torque Lite / Torque Pro (Paid Version) For IOS :

Car Scanner ELM OBD2 / OBD Home For more information ELM327.com Proton / Perodua User: Support : Perodua Bezza (Only support on Android *need to install Perodua Plugin for Torque)

*Not Support : Perodua Myvi 2003 – 2011 , Kelisa , Kenari , Kancil ，Viva Support : Proton Saga Blm , Flx (Only support on Android .

*need to install Proton Plugin for Torque) Cara guna kat Proton : https://www.youtube.com/watch?v=ppd3Mwobolw&t=8s

*Not Support : Proton Wira , Satria , Waja ,Saga (Lama) , Iswara, gen2 ,persona Multi-Protocol Support: ISO9141-2(5 baud init, 10.4Kbaud) ISO14230-4 KWP (5 baud init, 10.4 Kbaud) ISO14230-4 KWP (fast init, 10.4 Kbaud) ISO15765-4 CAN (11bit ID, 500 Kbaud) ISO15765-4 CAN (29bit ID, 500 Kbaud) ISO15765-4 CAN (11bit ID, 250 Kbaud) ISO15765-4 CAN (29bit ID, 250 Kbaud) Device type: Car bluetooth read interface scanner Interface type: Auto ELM327 V2.1 Super mini bluetooth ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols Net Weight: 0.01KG

• Works with all OBD-II compliant vehicles

• Wireless (Bluetooth)

• Software included for Palm, PDA

• Software included for Windows PC

• Software included for Windows Smartphone

• Supports ISO 9141, KWP2000 • Supports SAE J1850

• Supports CAN bus Functions:

• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

• turn off the MIL (“Check Engine” light) • Display current sensor data, including:

• Engine RPM

• Calculated Load Value

• Coolant Temperature

• Fuel System Status

• Vehicle Speed

• Short Term Fuel Trim

• Long Term Fuel Trim

• Intake Manifold Pressure

• Timing Advance

• Intake Air Temperature

• Air Flow Rate

• Absolute Throttle Position

• Oxygen sensor voltages/associated short term fuel trims

• Fuel System status

• Fuel Pressure

• Many others..

Package included : 1 CD (Software for Diagnostic)

*You can also download from ELM327.c
